Multi-agent collaboration allows one agent to trigger another agent within a workflow, enabling orchestration where specialized agents handle specific tasks while a coordinator manages the overall process.

​
Understanding Multi-Agent Systems

Rather than building monolithic agents that handle everything, create specialized agents that excel at specific tasks and coordinate them through agent-to-agent communication.

Specialization

Build focused agents optimized for specific domains or tasks

Reusability

Use the same specialized agents across multiple workflows

Modularity

Update individual agents without affecting the entire system

Orchestration

Coordinate complex processes with clear separation of concerns

​
How Agent Triggering Works

Agents trigger other agents using the “Trigger Agent Task” tool within workflow nodes.

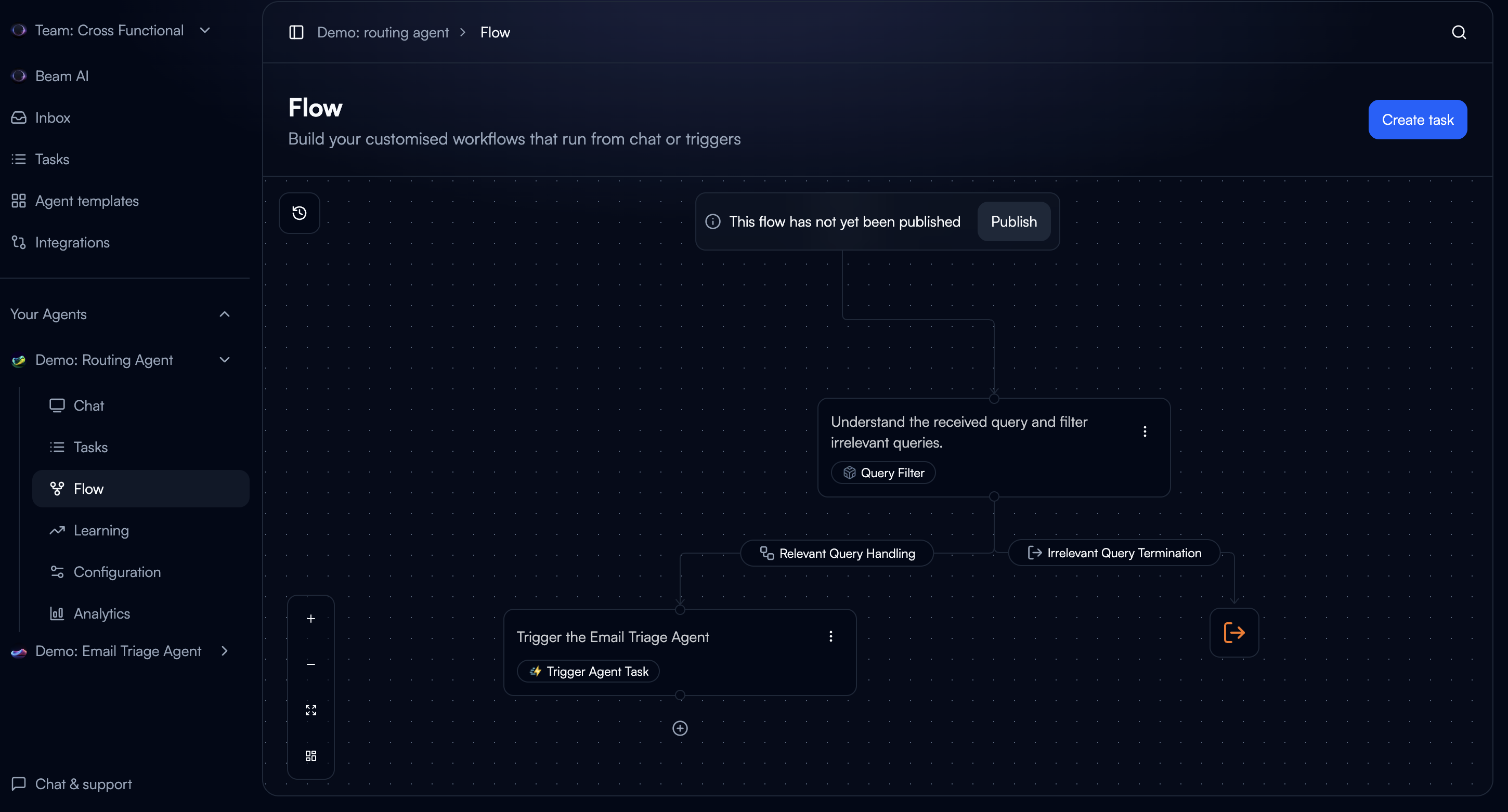

Flow with Trigger Agent Task node
The Process:
  1. Parent agent reaches a node with “Trigger Agent Task”
  2. Payload data is passed to the target agent
  3. Target agent executes its workflow
  4. Result is returned to parent agent
  5. Parent agent continues execution

​
Triggering Agents from Workflows

1

Add Node to Flow

Add a new node where you want to trigger another agent
2

Select Trigger Agent Task Tool

Choose “Trigger Agent Task” from the tool selector

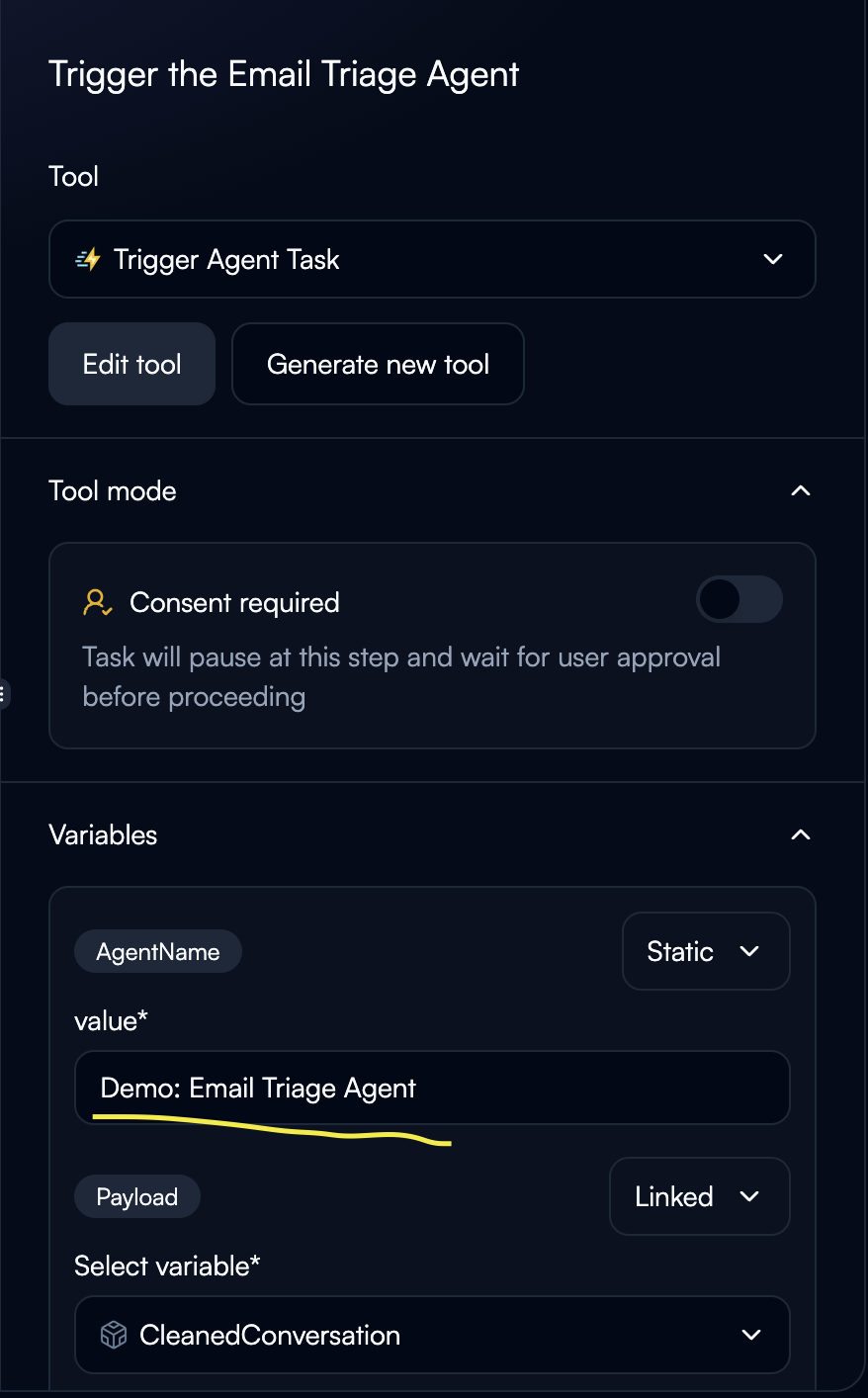

Trigger Agent Task tool configuration
3

Configure Agent Name

Specify which agent to trigger:Static Configuration:
  • Hardcode agent name: “Demo: Email Triage Agent”
  • Best for fixed orchestration
Dynamic Configuration:
  • Agent name from previous node output
  • Enables conditional routing to different agents
4

Configure Payload

Define what data to send to the target agent:

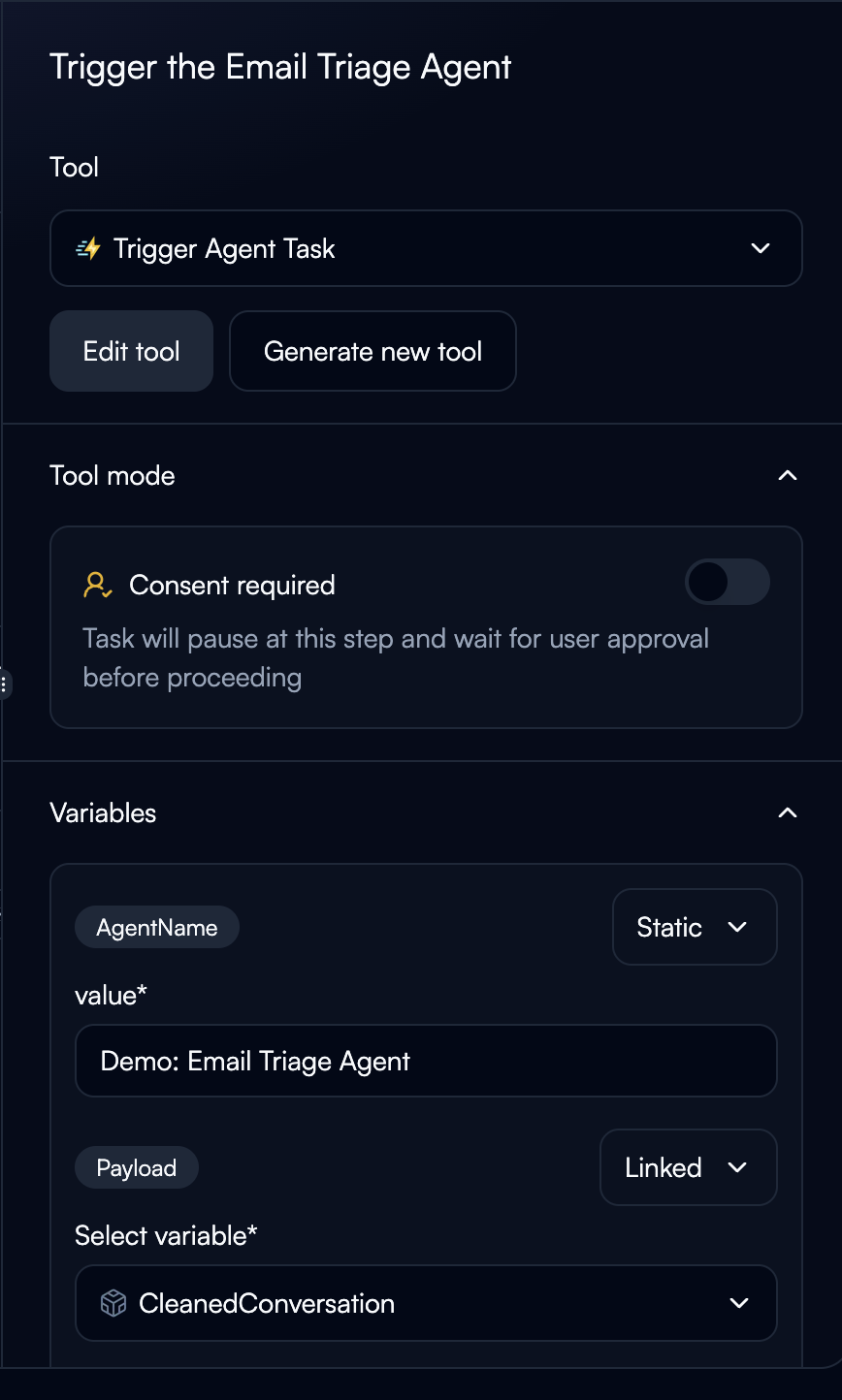

Payload configuration with linked variables
Payload Variable:
  • Use “Linked” to pass data from previous nodes
  • Example: ${query_filter.CleanedConversation}
  • The payload becomes the task_query input for the target agent
5

Handle Agent Output

The triggered agent returns its resultAccess results:
${trigger_node.output_variable}
Output structure depends on the target agent’s configuration

​
Tool Execution Modes

Fully Automated:
  • Agent triggers automatically
  • Best for trusted collaborations
  • Fastest execution
Consent Required:
  • Pauses for user approval before triggering
  • Best for critical operations or testing
  • Shows what data will be sent

​
Troubleshooting

Error: “Agent '' not found”Solutions:
  • Verify exact agent name (case-sensitive)
  • Check agent exists and is published
  • Update configuration if agent renamed
Issue: Target agent doesn’t receive expected dataSolutions:
  • Verify previous node outputs contain data
  • Check variable names match exactly
  • Review target agent’s expected input format
Issue: Agent A triggers Agent B which triggers Agent ASolutions:
  • Add recursion depth tracking in payload
  • Implement max iteration limits
  • Redesign to avoid circular dependencies

​
